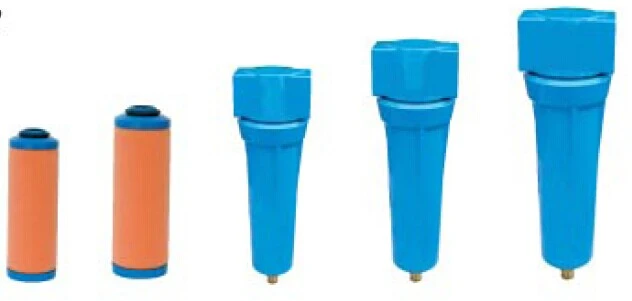

Compressor Spare Parts--filters

Xiamen HighQ Compressor Co., Ltd. is one of the leading manufacturers and suppliers of compressor spare parts--filters in China. Please rest assured to buy advanced compressor spare parts--filters made in China from our factory. If you have any enquiry about cooperation, please feel free to email us.



With over 20 years' experience, HighQ Compressor is specialized in manufacturing and marketing compressor spare parts--filters, which is of high efficiency, low energy consumption and long lifespan. As one of the professional manufacturers and suppliers in China, we warmly welcome you to buy quality equipment made in China from our factory.

Basic Info
Pressure range: From 10bar to 60bar
Treatment capacity: From 0.4m3/min to 360m3/min
High quality filter element to ensure filtration rate with low pressure drop
Excellent drain efficiency with less air loss
Aluminium cartidge is corrision resistance

Q grade: Filtrate impurity 5ppm
P grade: Filtrate impurity 0.5ppm
S grade: Filtrate impurity 0.01ppm
C grade: Filtrate impurity 0.003ppm
Match with screw air compressor.

Parameter & Specification

Model	Air Flow		Interface Thread	Max. Working Pressure	Weight	Dimension(mm)			Filter Cartridge
	m3/min	CFM		Mpa	KG	A	B	C
PAF-004	0.4	14	G3/4"~1	1.6	1.1	267	240	89	1×004
PAF-007	0.7	25	G3/4"~1	1.6	1.1	267	240	89	1×007
PAF-015	1.5	53	G3/4"~1	1.6	1.1	267	240	89	1×015
PAF-024	2.4	85	G1 1 1/2"	1.6	2.2	513	305	109	1×024
PAF-036	3.6	124	G1 1 1/2"	1.6	2.2	513	305	109	1×035
PAF-060	6	212	G1 1 1/2"	1.6	2.7	513	440	109	1×060
PAF-090	9	318	G2 2 1/2"	1.6	8	550	490	150	1×090
PAF-120	12	424	G2 2 1/2"	1.6	16	928	890	150	1×120
PAF-150	15	530	G2 2 1/2"	1.6	16	928	890	150	1×150
PAF-240	24	848	PN16D110	1.6	137	1225	795	275	2×120
PAF-270	27	954	PN16D150	1.6	137	1521	795	275	2×120
PAF-320	33	1165	PN16D150	1.6	137	1521	870	275	2×120
PAF-360	36	1271	PN16D150	1.6	137	1521	870	473	3×120
PAF-450	45	1590	PN16D150	1.6	140	1716	870	473	3×150
PAF-600	60	2120	PN16D150	1.6	184	1812	1315	520	4×150

Grade

Grade	Aplication	Range	Material	Filtrate Impurity	Oil Contect	Max. Pressure	Max.Temp.	Pressure Difference	Pressure diff.(Max)
Q-Grade	Reciprocating compressor	Pre-Filter	Multi Layers of glass fiber	5micron	5ppm	16kg/cm2	65℃	0.2 kg/cm2	0.7kg/cm2
P-Grade	Screw air compressor	Pre-filter	Multi Layers of glass fiber	1.0micron	0.5ppm	16kg/cm2	65℃	0.17 kg/cm2	0.7kg/cm3
S-grade	General air compressor	Post-filter	Multi Layers of glass fiber	0.1micron	0.001ppm	16kg/cm2	65℃	0.27 kg/cm2	0.7kg/cm2
C-grade	High precision filtration	Special	Activated carbon	0.003micron	0.003ppm	16kg/cm2	65℃	0.07 kg/cm2	0.7kg/cm2

With over 20 years' experience, HighQ Compressor is specialized in manufacturing and marketing filter for air compressor, which is of high efficiency, low energy consumption and long lifespan. As one of the professional manufacturers and suppliers in China, we warmly welcome you to buy quality equipment made in China from our factory.
