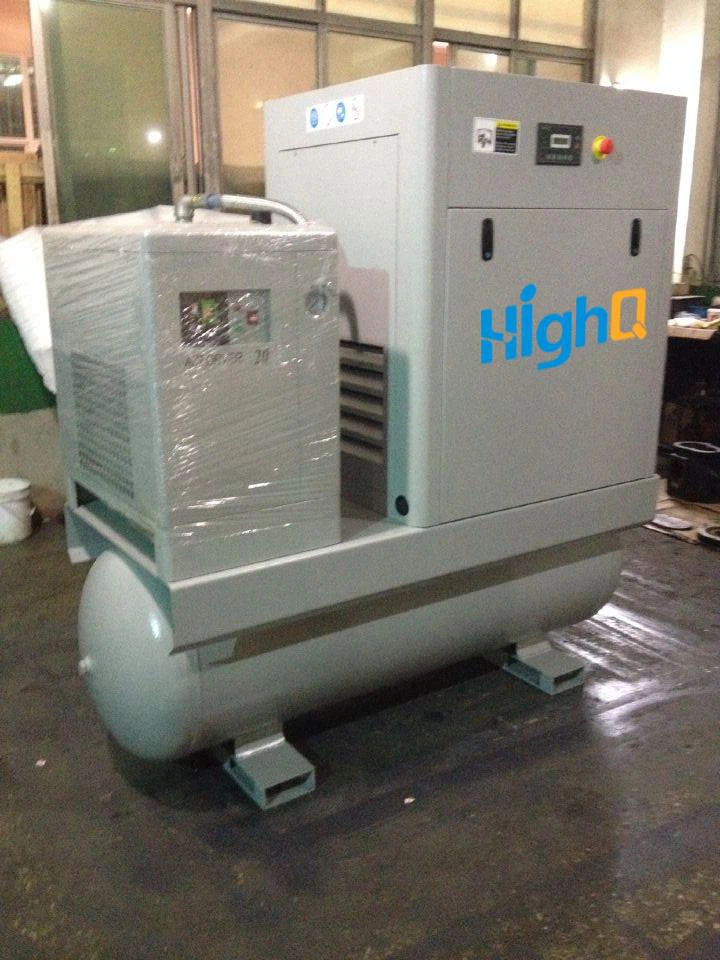

Small All-in-One Compressor
HighQ is recognized by our customers and peers as the leading manufacturer and distributor of high performance air compressors for all applications. Our promise is to consistently deliver performance, reliability and value to our customers. Our goal is to provide the ultimate Vital Air Source – the heart of any air suspension system.
Basic Info
●Model NO.: HQ-7.5C 7.5HP
●Type: Belt Driven CompactedScrew air compressor
●Performance: Low Noise ,Safe, Durable
●Drive Mode: Electric
●Power Source: AC Power
●Configuration: Stationary
●Material: Cast Iron
●Lubrication Style: Oil-less, Rotary
●Work Pressure ：7-12.5bar
●Export Markets :Global
●Trademark: HighQ
Specification: CE TUV UL ISO 9001：2001
●Origin: China
●HS Code: 8414809090
Product Description
Features,
.Important – All Products:
It is advisable to keep all original packaging.
Warranty coverage is continual from the initial date of purchase and does not restart at anytime under any circumstances.
This limited warranty is valid only when the product receives all necessary preventative maintenance and servicing as described in the relevant User Manual.
Technical Specs | ||||||||||||||||||
| Model | Belt Driven | HQ-7.5C | HQ-10C | HQ-15C | HQ-20C | |||||||||||||
Air Delivery(FAD)/Working Pressure | 0.85/ 7 | 1.3/ 7 | 1.8/ 7 | 2.6/ 7 | ||||||||||||||
0.75/ 8 | 1.2/ 8 | 1.6/ 8 | 2.4/ 8 | |||||||||||||||
0.56/ 10 | 1.0/ 10 | 1.3/ 10 | 2.2/ 10 | |||||||||||||||
0.48/ 13 | 0.8/ 13 | 1.2/ 13 | 1.7/ 13 | |||||||||||||||
Cooling | Cooling Type | Air cooling | ||||||||||||||||
| Discharge Temp-Air End | Environment temp.+15oC | |||||||||||||||||
Motor | Nominal Power | KW | 5.5 | 7.5 | 11 | 15 | ||||||||||||
| Insulation Grade | IP54 | |||||||||||||||||
| Protection Class | F | |||||||||||||||||
| Electrical Entry | v/Hz/Ph | 380v/50hz/3P, 415V/50HZ/3P, 220V/60HZ/3P, 460V/60HZ/3P | ||||||||||||||||
| Start Model | Y-△ Starter | |||||||||||||||||
Unit | Max Working Ambient Temp | ℃ | Ambiet Temp.+15℃ | |||||||||||||||
| Noise Level | dB(A) | 62±2 dB(A) | 65±2 dB(A) | |||||||||||||||
| Lubricant Level | L | 12 | 14 | |||||||||||||||
| Drive Model | Belt Driven | |||||||||||||||||
| Air dryer | Air Delivery m3/min | 1 | 1.5 | 2 | 2.5 | |||||||||||||
| Max.Pressure | Standard 10bar, 13 bars is also available per request | |||||||||||||||||
| Air Tank | L | 500 | ||||||||||||||||
| Oil Residual | PPM | <=3 | ||||||||||||||||
| Particulate Residual | μm | <=3 | ||||||||||||||||
| Length | CM | 190 | 190 | 190 | 190 | |||||||||||||
| Width | CM | 60 | 60 | 60 | 60 | |||||||||||||
| Height | CM | 180 | 180 | 180 | 180 | |||||||||||||
| Unit Weight | KG | 420 | 450 | 750 | 780 | |||||||||||||
| Outlet diameter | Inch | ?" | 1 | |||||||||||||||
HighQ offers products, services and complete systems for the generation, treatment and delivery of energy in the form of compressed air. The system solutions aim at optimal economy and efficiency.
