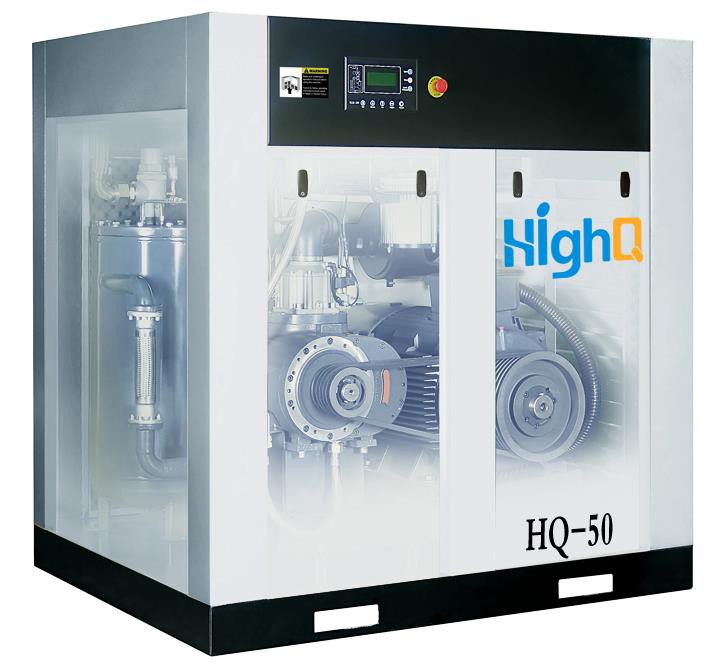

VS Belt Rotary Air Compressor ( HQ Series)
With over 20 years' experience, HighQ Compressor is specialized in manufacturing and marketing direct driven rotary air compressor ( hq series), which is of high efficiency, low energy consumption and long lifespan. As one of the professional manufacturers and suppliers in China, we warmly welcome you to buy quality equipment made in China from our factory.
Our Factory
Basic Info
●Model NO.: HQ-60VFB
●Type: Screw
●Performance: Low Noise
●Drive Mode: Electric
●Power Source: AC Power
●Configuration: Stationary
●Material: Cast Iron
●Lubrication Style: Oil-less
●Air Flower : 7.4-6.0 m3/Min:
Work Pressure 7-13 bar
●Performance :Low Noise: Export Markets :Global
●Type:Direct: Power Source :AC Power
●Trademark: HighQ
●Specification: CE TUV
●Origin: China
●HS Code: 8414809090
Product Description
1. Variable speed drive
2. Controllable cost, incredible energy saving
3. One year warranty for the whole machine
4. Pass CE, ISO9001 Quality Certificate
5. Complete before-on-after sales service
6. Air -End Made in German. GHH-RAND and ROTORCOMP VERDICHIER GmbH. To assure its excellent performance Recognized throughout the world as a superior air-end because of it's superior performance under all conditions and they are recognized as the worlds best Air End being used in other major brand names- German made
2--Oil/Air Separator imported from German .Unique design in filtration system uses triple times efficient separation and fully segregation to assure the oil contain of 2~3ppm.
7.High efficiency and quality motor IP level 54,insulated rate F class, SFK
8. Famous Brand Belt Simple structure ,stable drive and high flexibility can prevent overload and reduce vibration to have longevity performance.
Technical Data for Variable Frequency Belt Driven Screw Air Compressor | ||||||||||||
Model | HQ-7.5VFB | HQ-10VFB | HQ-15VFB | HQ-20VFB | HQ-25VFB | HQ-30VFB | HQ-40VFB | HQ-50VFB | HQ-60VFB | HQ-75VFB | HQ-100VFB | |
Air Delivery/Working pressure (m3/min) | 0.85/0.7 | 1.3/0.7 | 1.8/0.7 | 2.6/0.7 | 3.0/0.7 | 3.8/0.7 | 5.3/0.7 | 6.4/0.7 | 7.4/0.7 | 10.3/0.7 | 13.6/0.7 | |
0.75/0.8 | 1.2/0.8 | 1.6/0.8 | 2.4/0.8 | 2.8/0.8 | 3.6/0.8 | 5.0/0.8 | 6.2/0.8 | 7.2/0.8 | 9.6/0.8 | 13.0/0.8 | ||
0.56/1.0 | 1.0/1.0 | 1.3/1.0 | 2.2/1.0 | 2.4/1.0 | 3.0/1.0 | 4.5/1.0 | 5.8/1.0 | 6.8/1.0 | 8.5/1.0 | 10.9/1.0 | ||
0.48/1.2 | 0.8/1.2 | 1.2/1.2 | 1.7/1.2 | 2.0/1.2 | 2.6/1.2 | 3.6/1.2 | 4.6/1.2 | 6.0/1.2 | 7.6/1.2 | 9.8/1.2 | ||
Cooling Method | Air Cooled | |||||||||||
Discharge temp. （℃） | Ambient temperature + 15 ℃ | |||||||||||
Lubricant （ L ） | 12 | 16 | 18 | 54 | 72 | |||||||
Noise Level | 65±2dB(A) | 68±2dB(A) | 70±2dB(A) | 72±2dB(A) | ||||||||
Driving type | Belt Driven | |||||||||||
Motor | P（ KW） | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 |
Starting Method | Variable Frequency /Y -△ Start | |||||||||||
Electricity | 380V/50HZ/3P, 415V/50HZ/3P, 220V/60HZ/3P, 460V/60HZ/3P | |||||||||||
Dimension L*W*H | 850 | 1150 | 1200 | 1300 | 1500 | 1750 | ||||||
800 | 850 | 1000 | 1300 | 1450 | 1500 | |||||||
1120 | 1300 | 1400 | 1480 | 1680 | 1750 | |||||||
Weight （ kg ） | 280 | 380 | 580 | 590 | 620 | 650 | 760 | 920 | 1080 | 1650 | 1880 | |
Air Outlet Pipe Diameter | ? 〃 | 1 〃 | 1? 〃 | 1? 〃 | 2 〃 | |||||||
Our Service
After-sale Service
1.Any questions or requests before, during or after sales, we would like to help you any time and will find you the best solution in 24 hours.
2. Warranty: Two years for the air-end and One year for the whole machine, spare parts will be provided with best price.
Special Customized Service
1) Full OEM
Quantity: 1 unit is acceptable
In this plan, we will do all the changes (Color, name plate and logo) as your need, and will not charge extra fee.
FAQ
Q1: Are you factory or trade company?
A1: We are factory.
Q2: Warranty terms of your machine?
A2: Two years for the air-end and One year warranty for the complete machine and technical support according to your needs.
Q3: Will you provide some spare parts of the machines?
A3: Yes, of course.
Q4: What about product package?
A4: We pack our products strictly with standard seaworthy case.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T down payment and 70% T/T balance payment.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other voltage will be 30-45 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, etc.
