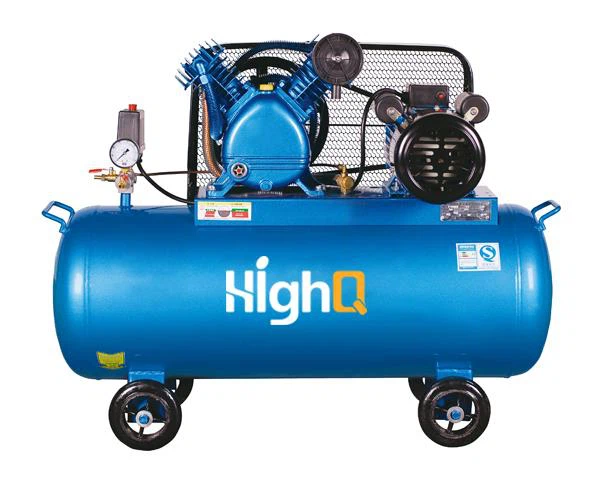

Piston Mini Air Compressor

With over 20 years' experience, HighQ Compressor is specialized in manufacturing and marketing piston mini air compressor, which is of high efficiency, low energy consumption and long lifespan. As one of the professional manufacturers and suppliers in China, we warmly welcome you to buy quality equipment made in China from our factory.



Basic Info of piston mini air compressor

●Type: Piston –Direct  Driven
●Performance: Energy Saving, Low Noise
●Drive Mode: Electric
●Power Source: AC Power
●Configuration: Stationary
●Material:  Aluminum
●Piston Type: Closed
●Lubrication Style: Lubricated
●Mute: Not Mute
●Driven Method:  Direct  Driven:
●Brand: OEM Can Be Provided
●Trademark: HighQ
●Specification: CE TUV
●Origin: China
●HS Code: 8414809090

Parameter & Specification

Model	Motor Power (kw/hp)	Cylinder  (diameter x Piece)	Exhaust volume  m3/min	Working Pressure (Mpa)	Dimension (LxWxH cm)	Weight (kg)
HD0208/2	0.75/1	42x1	0.1	0.7	47x27x47	21
HD0208/3	0.75/1	42x1	0.1	0.7	47x27x47	21
HD47L/1	1.5/2	47x1	0.12	0.7	60x31x58	27
HD47L/3	1.5/2	47x1	0.12	0.7	60x31x58	27
HD47L/4	1.5/2	47x1	0.12	0.7	60x31x58	27
HD47L/5	1.5/2	47x1	0.12	0.7	60x31x58	27
HDW202/5	1.5/2	61x1	0.196	0.7	60x30x59	24
HD030/1	1.876/3	47x1	0.12	0.7	70x30x58	32
HD030/2	2.2/3	42x2	0.2	0.7	68x32x62	36
HD030/5	1.5/2.5	47x1	0.12	0.7	80x32x57	37
HD020/9	2.2/3	55x2	0.25	0.7	66x35x55	36
HD030/9	3.0/4	65x2	0.36	0.7	58x48x84	111
