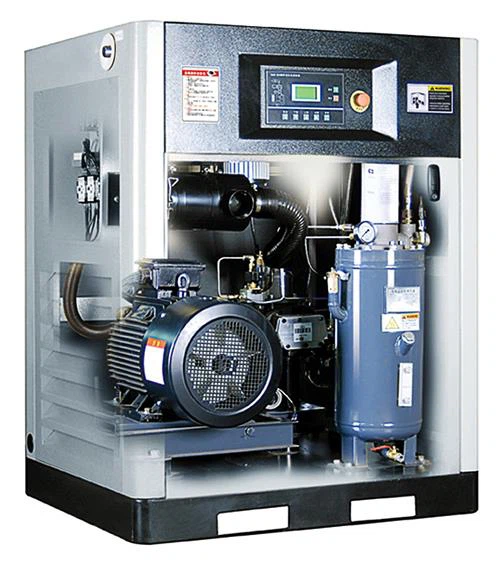

Fixed Speed Compressors
Xiamen HighQ Compressor Co., Ltd. is one of the leading manufacturers and suppliers of fixed speed compressors in China. Please rest assured to buy advanced fixed speed compressors made in China from our factory. If you have any enquiry about cooperation, please feel free to email us.
Our Air Compressors deliver long-lasting performance and durability that makes them ideal for use in many different industries.
We offer 24 hour emergency service all year round. Each emergency vehicle has the latest tools and equipment needed to service your compressed air system. Our expert technicians are experienced in servicing Piston Compressors, Screw Compressors, Variable & Fixed Speed Compressors and Piston Compressors. We perform all maintenance and quality testing on-site.
Model | HQ-10 | HQ-15 | HQ-20 | HQ-25 | HQ-30 | HQ-40 | HQ-50 | HQ-60 | HQ-75 | HQ-100 | ||
Air Delivery/Working pressure (m3/min) | 1.3/0.7 | 1.8/0.7 | 2.6/0.7 | 3.0/0.7 | 3.8/0.7 | 5.3/0.7 | 6.4/0.7 | 7.4/0.7 | 10.3/0.7 | 13.6/0.7 | ||
| 1.2/0.8 | 1.6/0.8 | 2.4/0.8 | 2.8/0.8 | 3.6/0.8 | 5.0/0.8 | 6.2/0.8 | 7.2/0.8 | 9.6/0.8 | 13.0/0.8 | |||
| 1.0/1.0 | 1.3/1.0 | 2.2/1.0 | 2.4/1.0 | 3.0/1.0 | 4.5/1.0 | 5.8/1.0 | 6.8/1.0 | 8.5/1.0 | 10.9/1.0 | |||
| 0.8/1.2 | 1.2/1.2 | 1.7/1.2 | 2.0/1.2 | 2.6/1.2 | 3.6/1.2 | 4.6/1.2 | 6.0/1.2 | 7.6/1.2 | 9.8/1.2 | |||
| Cooling Method | Air-Cooled | |||||||||||
| Discharge Temp.(oC) | Ambient Temperature + 15oC | |||||||||||
| Lubricant (L) | 14 | 16 | 18 | 54 | 72 | |||||||
| Noise Level | 62±2 dB(A) | 65±2 dB(A) | 68±2 dB(A) | 72±2 dB(A) | ||||||||
| Driving Type | Belt Drive | |||||||||||
| Motor | Power(KW) | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | |
| Start Method | Y - Start | |||||||||||
| Electricity | 380V/50HZ/3P or (415V/50HZ/3P),( 220V/60HZ/3P), (460V/60HZ/3P) | |||||||||||
| Dimension (L*W*H) | 750 | 1000 | 1100 | 1200 | 1300 | 1500 | 1750 | |||||
| 600 | 800 | 900 | 900 | 1100 | 1300 | 1350 | ||||||
| 950 | 1280 | 1400 | 1380 | 1480 | 1680 | 1750 | ||||||
| Weight(kg) | 310 | 450 | 480 | 550 | 580 | 680 | 840 | 920 | 1450 | 1760 | ||
| Air Outlet Pipe Diameter(Inch) | ?" | 1" | 1?" | 1?" | 2" | |||||||
With over 20 years' experience, HighQ Compressor is specialized in manufacturing and marketing 10hp-100hp 7.5kw-75kw belt driven lubricated screw air compresso, which is of high efficiency, low energy consumption and long lifespan. As one of the professional manufacturers and suppliers in China, we warmly welcome you to buy quality equipment made in China from our factory.
