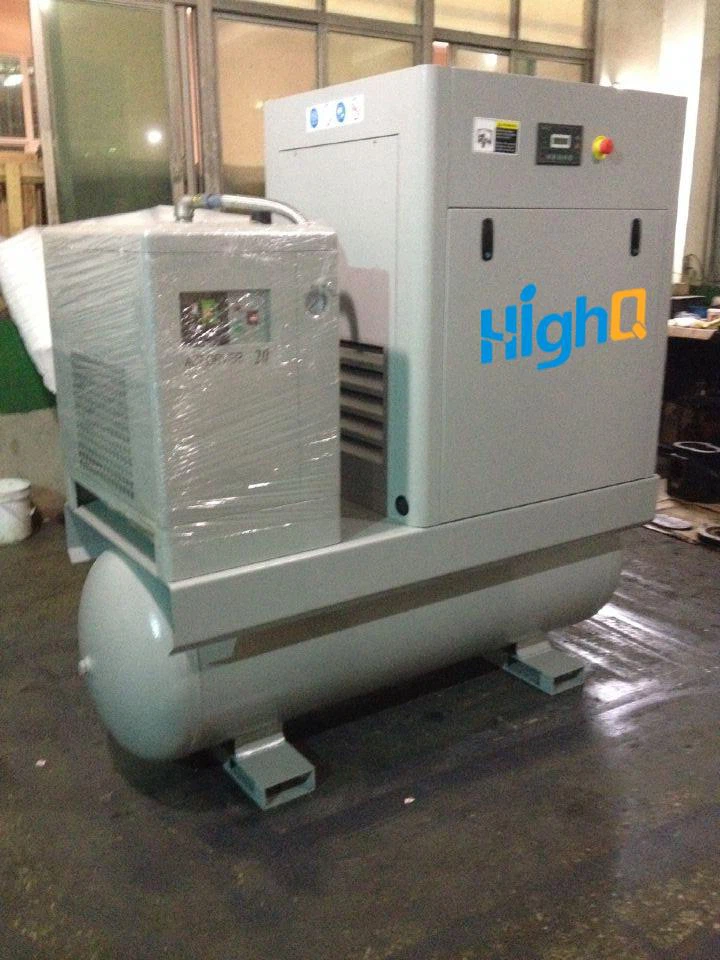

Compact Compressor with Air Receiver and Dryer



With over 20 years' experience, HighQ Compressor is specialized in manufacturing and marketing compact compressor with air receiver and dryer, which is of high efficiency, low energy consumption and long lifespan. As one of the professional manufacturers and suppliers in China, we warmly welcome you to buy quality equipment made in China from our factory.

Our Factory





Basic Info

●Model NO.: HQ-10  7.5 KW
●Type: Belt Driven CompactedScrew air compressor
●Performance:  Low Noise ,Safe, Durable
●Drive Mode:  Electric
●Power Source:  AC Power
●Configuration:  Stationary
●Material:  Cast Iron
●Lubrication Style:  Oil-less, Rotary
●Work Pressure ：7-12.5bar
●Export Markets :Global
●Trademark: HighQ
Specification: CE  TUV  UL  ISO 9001：2001
●Origin: China
●HS Code: 8414809090

All In One Screw Air Compressor
- screw compressor+ refrigerated air dryer + air receiver
- 5, 5kw to 15kw
-Low Energy Consumption, Low maintenance cost.
- Unique safe units make whole compressor more safety, more stable, lest  noise, lest energy Lose.
- Easy to install ,operate, maintain.
1, Germ Air-end, Schneider Controller, CE Certificate Air Tank
2,We have over 20 years professional experience in producing air compressor
3,Most of all the parts are imported  from German to assure the high quality and high performance
4,We have agency in many countries, we welcome customers from all over the world
5, We provide users with optimum air system solutions during before-sale. sale and after sale service

Technical Specs

Model

Belt Driven

HQ-7.5C

HQ-10C

HQ-15C

HQ-20C

Air Delivery(FAD)/Working Pressure  (m3/min /   bar)

0.85/ 7

1.3/ 7

1.8/ 7

2.6/ 7

0.75/ 8

1.2/ 8

1.6/ 8

2.4/ 8

0.56/ 10

1.0/ 10

1.3/ 10

2.2/ 10

0.48/ 13

0.8/ 13

1.2/ 13

1.7/ 13

Cooling

Cooling Type

Air cooling

Discharge Temp-Air End

Environment temp.+15oC

Motor

Nominal Power

KW

5.5

7.5

11

15

Insulation Grade

IP54

Protection Class

F

Electrical Entry

v/Hz/Ph

380v/50hz/3P, 415V/50HZ/3P, 220V/60HZ/3P, 460V/60HZ/3P

Start Model

Y-△ Starter

Unit

Max Working Ambient Temp

℃

Ambiet Temp.+15℃

Noise Level

dB(A)

62±2 dB(A)

65±2 dB(A)

Lubricant Level

L

12

14

Drive Model

Belt  Driven

Air dryer

Air Delivery m3/min

1

1.5

2

2.5

Max.Pressure

Standard 10bar, 13 bars is also available per request

Air Tank

L

500

Oil Residual

PPM

<=3

Particulate Residual

μm

<=3

Length

CM

190

190

190

190

Width

CM

60

60

60

60

Height

CM

180

180

180

180

Unit Weight

KG

420

450

750

780

Outlet diameter

Inch

?"

1

With over 20 years' experience, HighQ Compressor is specialized in manufacturing and marketing 7.5hp 10hp 15hp 20hp 5.5kw 7.5kw 11kw 15kw belt driven high quality industrial oil-less compact air compressor, which is of high efficiency, low energy consumption and long lifespan. As one of the professional manufacturers and suppliers in China, we warmly welcome you to buy quality equipment made in China from our factory.

Our Service


After-sale Service

1.Any questions or requests before, during or after sales, we would like to help you any time and will find you the best solution in 24 hours.

2. Warranty: Two years for the air-end and One year for the whole machine, spare parts will be provided with best price.



Special Customized Service

1) Full OEM

Quantity: 1 unit is acceptable

In this plan, we will do all the changes (Color, name plate and logo) as your need, and will not charge extra fee.



FAQ

Q1: Are you factory or trade company?
A1: We are factory.



Q2: Warranty terms of your machine?
A2: Two years for the air-end and One year warranty for the complete machine and technical support according to your needs.



Q3: Will you provide some spare parts of the machines?
A3: Yes, of course.



Q4: What about product package?
A4: We pack our products strictly with standard seaworthy case.



Q5: What about the voltage of products? Can they be customized?

A5: Yes, of course. The voltage can be customized according to your equirement.



Q6: Which payment term can you accept?
A6: 30% T/T down payment and  70% T/T balance payment.



Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other voltage will be 30-45 days.



Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.



Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR,  etc.
