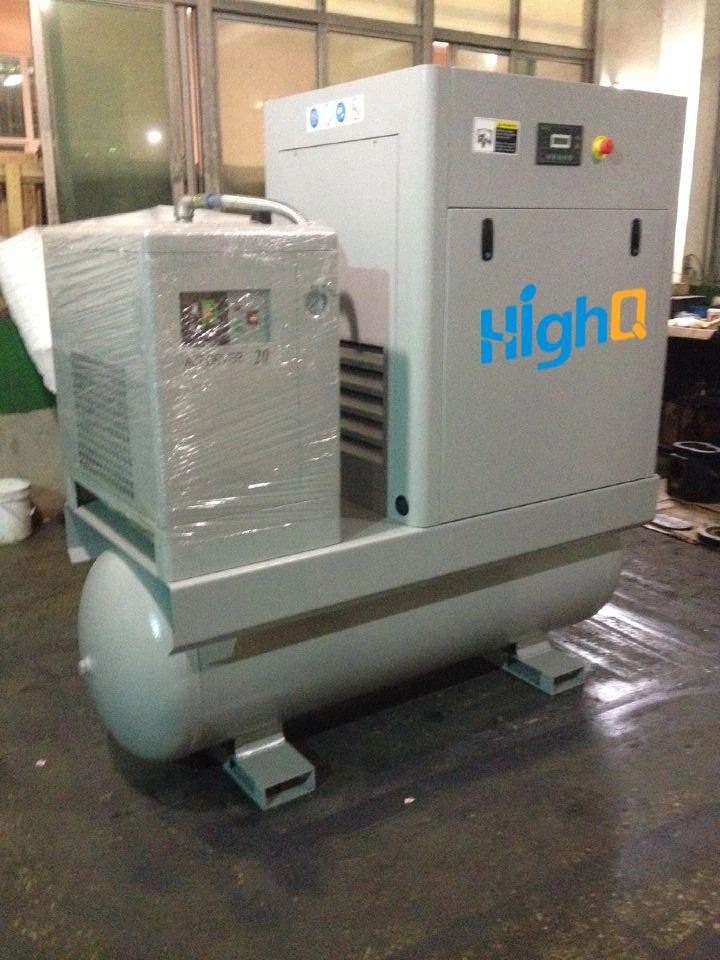

15 Kw Air Dryer+ Air Tank+Screw Air Compressor
With over 20 years' experience, HighQ Compressor is specialized in manufacturing and marketing 15 kw air dryer+ air tank+screw air compressor, which is of high efficiency, low energy consumption and long lifespan. As one of the professional manufacturers.
Basic Info
●Model NO.: HQ-20C 15KW
●Type: Belt Driven CompactedScrew air compressor
●Performance: Low Noise ,Safe, Durable
●Drive Mode: Electric
●Power Source: AC Power
●Trademark: HighQ
Specification: CE TUV UL ISO 9001：2001
●Origin: China
●HS Code: 8414809090
All In One Screw Air Compressor
- screw compressor+ refrigerated air dryer + air receiver
- 5, 5kw to 15kw
-Low Energy Consumption, Low maintenance cost.
- Unique safe units make whole compressor more safety, more stable, lest noise, lest energy Lose.
- Easy to install ,operate, maintain.
Technical Specs | ||||||||||||||||||
| Model | Belt Driven | HQ-7.5C | HQ-10C | HQ-15C | HQ-20C | |||||||||||||
Air Delivery(FAD)/Working Pressure | 0.85/ 7 | 1.3/ 7 | 1.8/ 7 | 2.6/ 7 | ||||||||||||||
0.75/ 8 | 1.2/ 8 | 1.6/ 8 | 2.4/ 8 | |||||||||||||||
0.56/ 10 | 1.0/ 10 | 1.3/ 10 | 2.2/ 10 | |||||||||||||||
0.48/ 13 | 0.8/ 13 | 1.2/ 13 | 1.7/ 13 | |||||||||||||||
Cooling | Cooling Type | Air cooling | ||||||||||||||||
| Discharge Temp-Air End | Environment temp.+15oC | |||||||||||||||||
Motor | Nominal Power | KW | 5.5 | 7.5 | 11 | 15 | ||||||||||||
| Insulation Grade | IP54 | |||||||||||||||||
| Protection Class | F | |||||||||||||||||
| Electrical Entry | v/Hz/Ph | 380v/50hz/3P, 415V/50HZ/3P, 220V/60HZ/3P, 460V/60HZ/3P | ||||||||||||||||
| Start Model | Y-△ Starter | |||||||||||||||||
Unit | Max Working Ambient Temp | ℃ | Ambiet Temp.+15℃ | |||||||||||||||
| Noise Level | dB(A) | 62±2 dB(A) | 65±2 dB(A) | |||||||||||||||
| Lubricant Level | L | 12 | 14 | |||||||||||||||
| Drive Model | Belt Driven | |||||||||||||||||
| Air dryer | Air Delivery m3/min | 1 | 1.5 | 2 | 2.5 | |||||||||||||
| Max.Pressure | Standard 10bar, 13 bars is also available per request | |||||||||||||||||
| Air Tank | L | 500 | ||||||||||||||||
| Oil Residual | PPM | <=3 | ||||||||||||||||
| Particulate Residual | μm | <=3 | ||||||||||||||||
| Length | CM | 190 | 190 | 190 | 190 | |||||||||||||
| Width | CM | 60 | 60 | 60 | 60 | |||||||||||||
| Height | CM | 180 | 180 | 180 | 180 | |||||||||||||
| Unit Weight | KG | 420 | 450 | 750 | 780 | |||||||||||||
| Outlet diameter | Inch | ?" | 1 | |||||||||||||||
With over 20 years' experience, HighQ Compressor is specialized in manufacturing and marketing 7.5hp 10hp 15hp 20hp 5.5kw 7.5kw 11kw 15kw belt driven high quality industrial oil-less compact air compressor, which is of high efficiency, low energy consumption and long lifespan. As one of the professional manufacturers and suppliers in China, we warmly welcome you to buy quality equipment made in China from our factory.
Our Service
After-sale Service
1.Any questions or requests before, during or after sales, we would like to help you any time and will find you the best solution in 24 hours.
2. Warranty: Two years for the air-end and One year for the whole machine, spare parts will be provided with best price.
Special Customized Service
1) Full OEM
Quantity: 1 unit is acceptable
In this plan, we will do all the changes (Color, name plate and logo) as your need, and will not charge extra fee.
FAQ
Q1: Are you factory or trade company?
A1: We are factory.
Q2: Warranty terms of your machine?
A2: Two years for the air-end and One year warranty for the complete machine and technical support according to your needs.
Q3: Long Life V-Belt Drive?
Less maintenance, reliable operation
Q4: What about product package?
A4: We pack our products strictly with standard seaworthy case.
Q5: Integrated Refrigerated Air Dryer
A5: Condenses the air to remove airborne moisture, dirt, and oil
Q6: Which payment term can you accept?
A6: 30% T/T down payment and 70% T/T balance payment.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other voltage will be 30-45 days.
