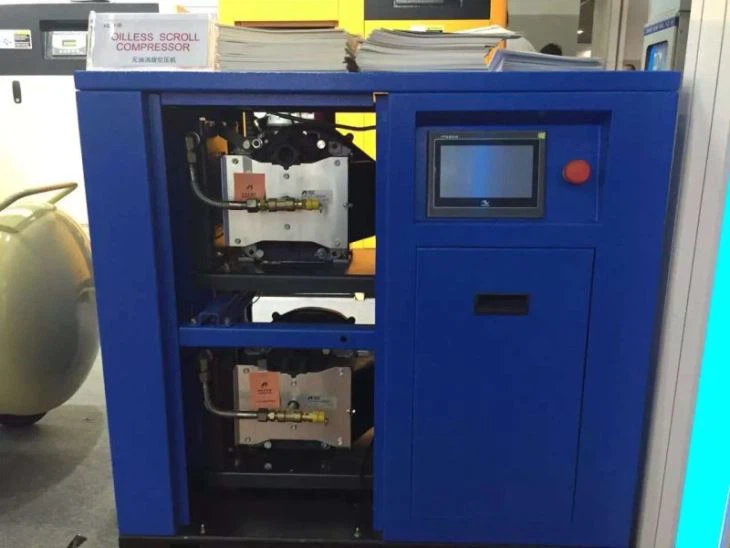

IWATA Air-end Oil Free Scroll Air Compressor

IWATA Air-end Oil Free Scroll Air Compressor

Oil-free scroll Air Compressor, 10bar Air Compressor, Screw Type Air Compressor manufacturer / supplier in China, also offering Low Pressure Screw Air Compressor,offering Best Quality Air Screw CompressorAir Compressor,8 Bar Electrical Driven Rotary Scroll Oil Free Air Compressor, Rotary Screw Direct Driven Oil Lubricated Air Compressor, Screw Air Compressor Machine and so on.

Send InquiryChat Now
Product Details

                               With over 20 years' experience, HighQ Compressor is specialized in manufacturing and marketing iwata air-end oil free scroll air compressor, which is of high efficiency, low energy consumption and long lifespan. As one of the professional manufacturers and suppliers in China, we warmly welcome you to buy quality equipment made in China from our factory.

Product Detail


Basic Info --- All Models of Scroll Compressors are equipped with JAPAN IWATA air-end(the same air-end of AC)

Warranty: 1 year complete unit 2 year air-end


●Model NO.: SCR-5--SCR-50

●Performance: Low Noise
●Drive Mode: Electric
●Power Source: AC Power
●Configuration: Stationary
●Material: Cast Iron
●Lubrication Style: Oil-Free
●Mute: Mute
●Type: Scroll
●Performance :Low Noise: Export Markets :Global
●Trademark: HighQ
●Specification: CE TUV
●Origin: China
●HS Code: 8414809090
Product Description
1.Multi-functional intelligent automatic controller .Simple operation ,in daily work just need to press START-STOP switch. mechanical working state such as current, pressure and temperature etc .full information display.
2. The compression chamber of the machine does not contain any oil. compressor gas is clean without pollution.
3.Low noise .can be close to supply gas directly ,save pipe installation, reduce the loss of transmission of energy consumption.
4. No touch in the operation ,no wearing parts ,exhaust continuously and stable .
5.Themaintenance cost is very low, only need to do the normal maintenance and cleaning filter .

Model Rated Power Working Pressure(bar) F.A.D      (m/min3) Air-end Number. Dimension Outlet Diameter
SCR-5 5HP 8~10 0.34 1 970*660*450 G1/2
SCR-10 10HP 8~10 0.68 2 970*660*920 G1/2
SCR-15 15HP 8~10 1.02 3 970*660*1450 G3/4
SCR-20 20HP 8~10 1.36 4 970*660*2000 G3/4
SCR-30 30HP 8~10 2.04 6 970*1320*1450 G3/4
SCR-50 50HP 8~10 3.4 10 970*1320*2550 G1


With over 20 years' experience, HighQ Compressor is specialized in manufacturing and marketing high quality oil free scroll air compressor, which is of high efficiency, low energy consumption and long lifespan. As one of the professional manufacturers and suppliers in China, we warmly welcome you to buy quality equipment made in China from our factory.
