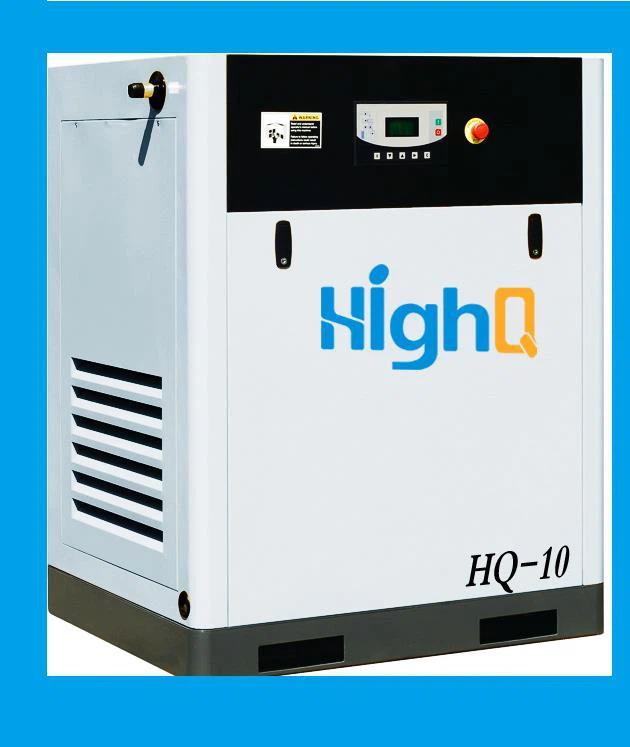

10HP-100HP 7.5KW-75KW Belt Driven Lubricated Screw Air Compresso

Product Detail ●Model NO.: HQ-10B Belt Driven ●Type: Screw ●Performance: Low Noise ●Drive Mode: Electric ●Power Source: AC Power ●Configuration: Stationary ●Material: Cast Iron ●Lubrication Style: Oil-less

Send InquiryChat Now
Product Details

Product Detail
●Model NO.: HQ-10B  Belt Driven
●Type: Screw
●Performance: Low Noise
●Drive Mode: Electric
●Power Source: AC Power
●Configuration: Stationary
●Material: Cast Iron
●Lubrication Style: Oil-less
●Mute: Mute
●Air Flower :1.28-: Export Markets :Global
●Performmance:Low Noise: Work Pressure 7-12.5bar
●Trademark: HighQ
●Specification: CE TUV
●Origin: China
●HS Code: 8414809090
Product Description Features,
high-qualityhigh efficiency Low noise energy saving
1-Air -End Made in German. GHH-RAND and ROTORCOMP VERDICHIER GmbH. To assure its excellent performance Recognized throughout the world as a superior air-end because of it's superior performance under all conditions and they are recognized as the worlds best Air End being used in other major brand names- German made
2--Oil/Air Separator imported from German .Unique design in filtration system uses triple times efficient separation and fully segregation to assure the oil contain of 2~3ppm.
3-High efficiency and quality motor IP level 54,insulated rate F class, SFK
4-Famous Brand Belt Simple structure ,stable drive and high flexibility can prevent overload and reduce vibration to have longevity performance.
5-Schneider Electric Contractor World leading brand of electric part mainly in managing electric energy to reduce electric consumptions
6-Oil Filter Selected Oilfilter provides high filtration rate up to 5 micron so as to removedust and impurity efficiency.

Model

HQ-10

HQ-15

HQ-20

HQ-25

HQ-30

HQ-40

HQ-50

HQ-60

HQ-75

HQ-100

Air Delivery/Working pressure (m3/min)

1.3/0.7 1.8/0.7 2.6/0.7 3.0/0.7 3.8/0.7 5.3/0.7 6.4/0.7 7.4/0.7 10.3/0.7 13.6/0.7
1.2/0.8 1.6/0.8 2.4/0.8 2.8/0.8 3.6/0.8 5.0/0.8 6.2/0.8 7.2/0.8 9.6/0.8 13.0/0.8
1.0/1.0 1.3/1.0 2.2/1.0 2.4/1.0 3.0/1.0 4.5/1.0 5.8/1.0 6.8/1.0 8.5/1.0 10.9/1.0
0.8/1.2 1.2/1.2 1.7/1.2 2.0/1.2 2.6/1.2 3.6/1.2 4.6/1.2 6.0/1.2 7.6/1.2 9.8/1.2
Cooling Method

Air-Cooled

Discharge Temp.(ºC)

Ambient Temperature + 15ºC

Lubricant (L)         14

16

18

54

72

Noise Level 62±2 dB(A)

65±2 dB(A)

68±2 dB(A)

72±2 dB(A)

Driving Type

Belt Drive

Motor Power(KW)

7.5

11

15

18.5

22

30

37

45

55

75

Start Method Y - Start
Electricity 380V/50HZ/3P or (415V/50HZ/3P),( 220V/60HZ/3P), (460V/60HZ/3P)
Dimension (L*W*H) 750

1000

1100

1200

1300

1500

1750

600

800

900

900

1100

1300

1350

950

1280

1400

1380

1480

1680

1750

Weight(kg)

310

450

480

550

580

680

840

920

1450

1760

Air Outlet Pipe Diameter(Inch)

¾"

1"

1¼"

1½"

2"

With over 20 years' experience, HighQ Compressor is specialized in manufacturing and marketing 10hp-100hp 7.5kw-75kw belt driven lubricated screw air compresso, which is of high efficiency, low energy consumption and long lifespan. As one of the professional manufacturers and suppliers in China, we warmly welcome you to buy quality equipment made in China from our factory.
