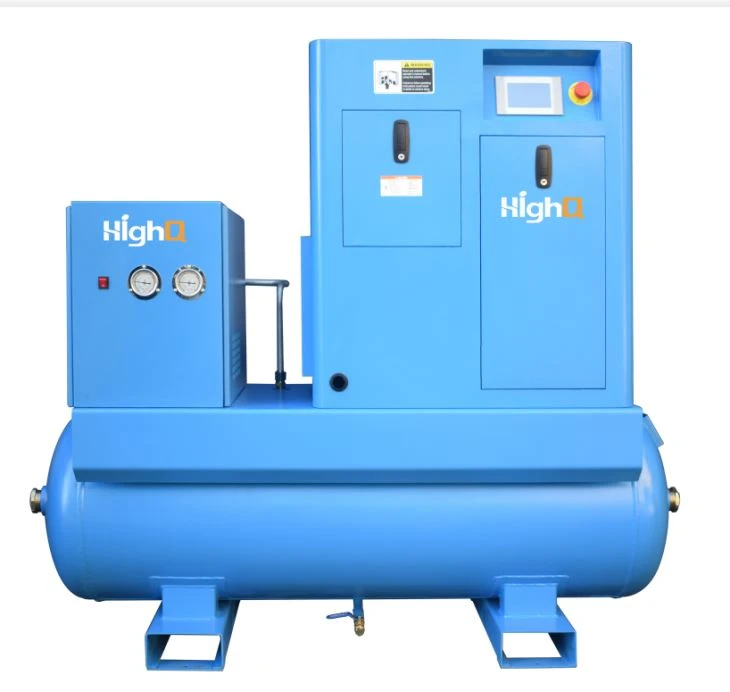

Compact Electric Screw Rotary Air Compressor

Compact Electric Screw Rotary Air Compressor

Oil Less Compressor, Screw Air Compressor, Screw Compressor manufacturer / supplier in China, Rotary Screw Air Compressor , Stationary Oil Feeled Screw Variable Frequency Air Compressor, Industry Reciprocating Piston medium Pressure Air Compressor and so on.

Send InquiryChat Now
Product Details



HighQ has an expert team .HighQ Compressor’s mission is to serve you better and our experienced technicians take great pride in guaranteeing all of your air compressor equipment, air compressor parts and vacuum needs are served quickly and efficiently.


Basic Info

●Model NO.: HQ-10C  7.5KW
●Type: Belt Driven CompactedScrew air compressor
●Performance:  Low Noise ,Safe, Durable
●Drive Mode:  Electric
●Power Source:  AC Power
●Configuration:  Stationary
●Material:  Cast Iron
●Lubrication Style:  Oil-less, Rotary
●Work Pressure :7-12.5bar
●Export Markets :Global
●Trademark: HighQ
Specification: CE  TUV  UL  ISO 9001:2001
●Origin: China
●HS Code: 8414809090
Product Description
Features,
All In One Screw Air Compressor
- screw compressor+ refrigerated air dryer + air receiver
- 5, 5kw to 15kw
-Low Energy Consumption, Low maintenance cost.
- Unique safe units make whole compressor more safety, more stable, lest  noise, lest energy Lose.
- Easy to install ,operate, maintain.
1, Germ Air-end, Schneider Controller, CE Certificate Air Tank
2,We have over 20 years professional experience in producing air compressor
3,Most of all the parts are imported  from German to assure the high quality and high performance
4,We have agency in many countries, we welcome customers from all over the world
5, We provide users with optimum air system solutions during before-sale. sale and after sale service

Technical Specs







ModelBelt DrivenHQ-7.5C

HQ-10C

HQ-15C

HQ-20C


Air Delivery(FAD)/Working Pressure
(m3/min /   bar)


0.85/ 7

1.3/ 7

1.8/ 7

2.6/ 7



0.75/ 8

1.2/ 8

1.6/ 8

2.4/ 8




0.56/ 10

1.0/ 10

1.3/ 10

2.2/ 10




0.48/ 13

0.8/ 13

1.2/ 13

1.7/ 13



Cooling

Cooling Type

Air cooling




Discharge Temp-Air End

Environment temp.+15oC





Motor

Nominal PowerKW

5.5

7.5

11

15

Insulation Grade

IP54





Protection Class

F





Electrical Entryv/Hz/Ph

380v/50hz/3P, 415V/50HZ/3P, 220V/60HZ/3P, 460V/60HZ/3P





Start Model

Y-△ Starter





Unit

Max Working Ambient Temp

Ambiet Temp.+15℃




Noise LeveldB(A)

62±2 dB(A)

65±2 dB(A)




Lubricant LevelL

12

14




Drive Model

Belt  Driven





Air dryerAir Delivery m3/min

1

1.5

2

2.5


Max.Pressure

Standard 10bar, 13 bars is also available per request






Air TankL

500





Oil ResidualPPM

<=3





Particulate Residualμm

<=3





LengthCM

190

190

190

190


WidthCM

60

60

60

60


HeightCM

180

180

180

180


Unit WeightKG

420

450

750

780


Outlet diameterInch

?"

1




With over 20 years' experience, HighQ Compressor is specialized in manufacturing and marketing 7.5hp 10hp 15hp 20hp 5.5kw 7.5kw 11kw 15kw belt driven high quality industrial oil-less compact air compressor, which is of high efficiency, low energy consumption and long lifespan. As one of the professional manufacturers and suppliers in China, we warmly welcome you to buy quality equipment made in China from our factory.


Our Service


After-sale Service

1.Any questions or requests before, during or after sales, we would like to help you any time and will find you the best solution in 24 hours.

2. Warranty: Two years for the air-end and One year for the whole machine, spare parts will be provided with best price.



Special Customized Service

1) Full OEM

Quantity: 1 unit is acceptable

In this plan, we will do all the changes (Color, name plate and logo) as your need, and will not charge extra fee.




FAQ

Q1: Are you factory or trade company?
A1: We are factory.



Q2: Warranty terms of your machine?
A2: Two years for the air-end and One year warranty for the complete machine and technical support according to your needs.



Q3: Will you provide some spare parts of the machines?
A3: Yes, of course.



Q4: What about product package?
A4: We pack our products strictly with standard seaworthy case.



Q5: What about the voltage of products? Can they be customized?

A5: Yes, of course. The voltage can be customized according to your equirement.



Q6: Which payment term can you accept?
A6: 30% T/T down payment and  70% T/T balance payment.
